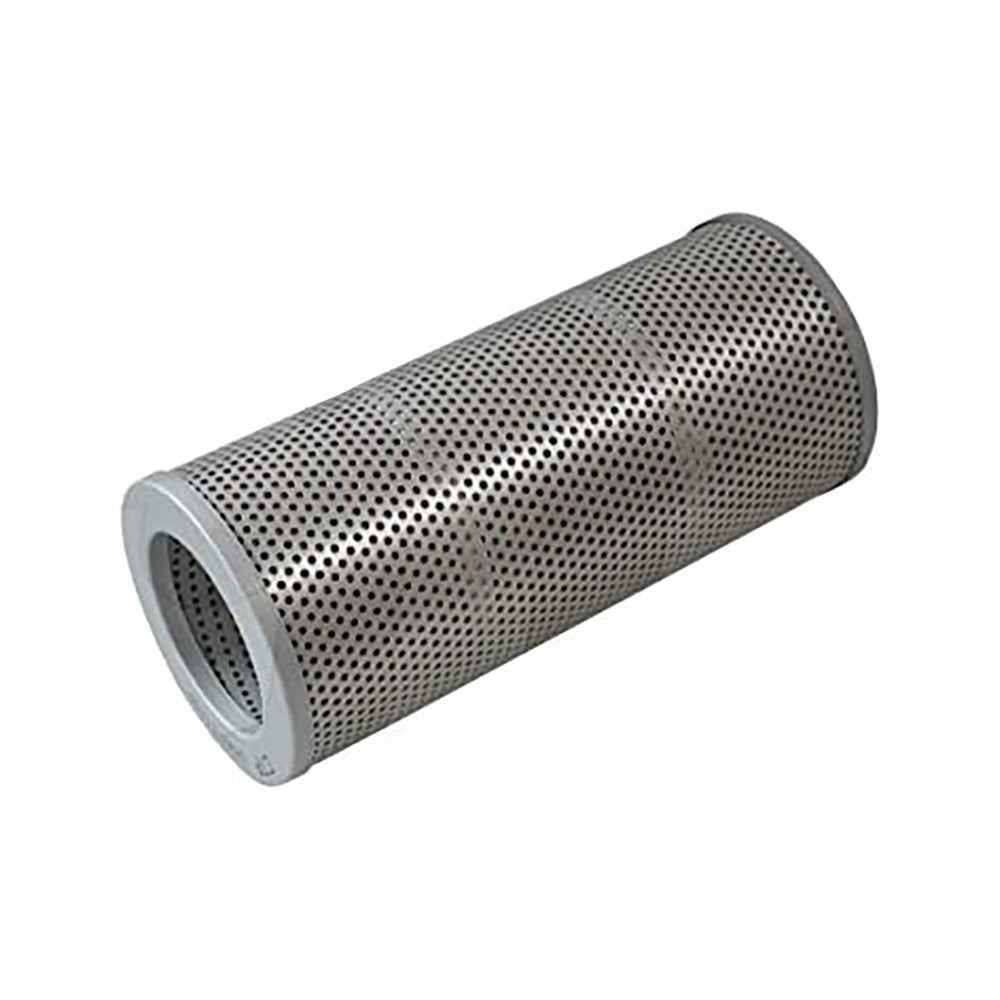

07063-51100 Element Fits Komatsu Models

One New Aftermarket Replacement Hydraulic Filter Element for Komatsu Excavators, Bulldozers, and Graders

This aftermarket replacement hydraulic filter element (07063-51100) services the hydraulic oil return system on a wide range of Komatsu construction equipment, including PC-series excavators, D-series bulldozers, PW-series wheeled excavators, and GD-series motor graders. Keeping the hydraulic system clean protects pumps, valves, and cylinders from contamination and extends overall machine life.

Specifications

• Outer Diameter: 130 mm
• Inner Diameter: 87 mm
• Height: 293 mm
• Type: Hydraulic Return Line Filter Element

Compatible Models

Komatsu Excavators (PC-series): PC70-7E, PC100-1, PC100-2, PC100-3, PC100-5, PC110-7, PC120-1, PC120-2, PC120-3, PC120-5, PC120-6, PC120-6E, PC120-6EO, PC120-7, PC128US, PC128UU, PC130, PC130-7, PC130-8, PC138, PC138US, PC138UU, PC150, PC158, PC158US, PC160, PC180, PC180LC-3, PC200EL, PC200EN

Komatsu Wheeled Excavators (PW-series): PW100-1, PW130, PW130ES, PW150-1, PW150ES, PW170ES

Komatsu Bulldozers (D-series): D50-17, D50-18, D53S-16, D53S-17, D55S-3, D57S-1, D60-11, D60-12, D85E-18, D85P-18, D95S-1, D95S-2, D135A-1, D135A-2, D150A-1, D155A-1, D155A-2, D155A-3, D155A-5, D155A-6, D155AX-3, D155AX-5, D155AX-6, D155AX-7, D160, D275A-2, D275A-5, D275AX-5

Komatsu Motor Graders (GD-series): GD555-3, GD555-5, GD655-3, GD655-5, GD675-3, GD675-5

Komatsu Dump Trucks: HD320-2, HD325-2, HD460-1

Komatsu Compactors/Scrapers: WF22A-2, WF22T-2, WS16-2, WS23S-1, WS23S-2A

Replaces Part Number(s):

07063-51100, 0706351100, 07063-01100, 0706301100, 175-60-27380, 1756027380, 141-60-18270, 1416018270, 2036061230

Aftermarket Interchange Numbers

Baldwin PT8506-MPG, Fleetguard HF28977, Fleetrite HFR828977, Donaldson P557380, HiFi SH60110, SF-Filter HY9568/8, Wix 57245, Sakura H-56600, Hengst EY51H, Caterpillar 8J8850

New aftermarket replacement part - not remanufactured, not used.
