Mulching Blade & Deck Spindle Kit Fits Gravely Replaces 025124

Mulching Blade & Deck Spindle Kit Fits Gravely Replaces 025124

$800.00 CAD
$800.00 CAD
Sale Sold out
Shipping calculated at checkout.

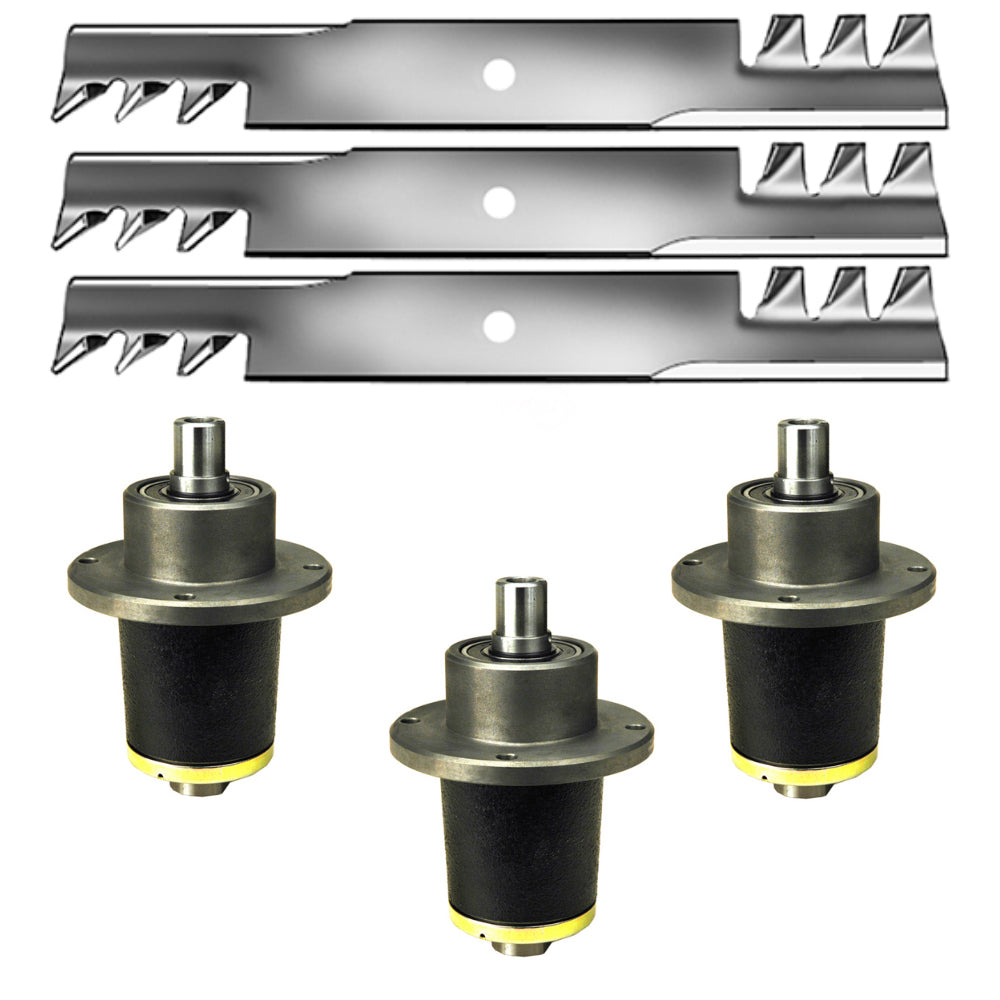

One New Aftermarket Mulching Blade & Deck Spindle Kit

Tech Info:
 -(3) Mulching Blade
 -Length: 20-1/2"
 -Width: 2-1/2"
 -Thickness: 0.2040"
 -CH Diameter: 5/8"
 -Replaces Part Numbers: 613112, 1-613112, 103-0301-S
 -
 -(3) Deck Spindle
 -Height7 5/8"
 -Keyway Width1/4"
 -Replaces Part Numbers: 285-951, B1BB01, 037400050, 037-6015-50, 037-6015-00, 037601500

Fits Gravely:
 Models: 52921, PM300, 785067, 785067, 785067, 787054, 787054, 888008
 Replaces Part Number(s): 025124, 03253900, 046999, 048864, 08781800, 08781851, 08898900, 08899100, 089046, 08904651, 08979600, 08979651, 090812, 09081200, 25124, 46999, 48864, 89796, 8979651

Models This Part Fits:

992005 PM200, 52921 60" PM300, 60", 785067 50", Pro 200 and 300 series, 47687 60" PM Series, 47688 50" PM Series, 992003 PM200, 787054 60" PM Series, 888008 60" Pro Series, 47689 72" PM Series

Additional Information:

(3) Mulching Blades Length: 20-1/2" Width: 2-1/2" Thickness: 0.2040" Center Hole Diameter: 5/8" Replaces Part Numbers: 613112, 1-613112, 103-0301-S (3) Deck Spindles Height: 7 5/8" Keyway Width: 1/4" Replaces Part Numbers: 285-951, B1BB01, 037400050, 037-6015-50, 037-6015-00, 037601500

Reference Numbers:

025124, 03253900, 046999, 048864, 08781800, 08781851, 08898900, 08899100, 089046, 08904651, 08979600, 08979651, 090812, 09081200, 25124, 46999, 48864, 89796, 8979651

Product Sub Group:

Deck Components
