Deck Rebuild Kit with Mulching Blades Fits Craftsman Replaces 000000532134149

Deck Rebuild Kit with Mulching Blades Fits Craftsman Replaces 000000532134149

$175.00 CAD
$175.00 CAD
Sale Sold out
Shipping calculated at checkout.

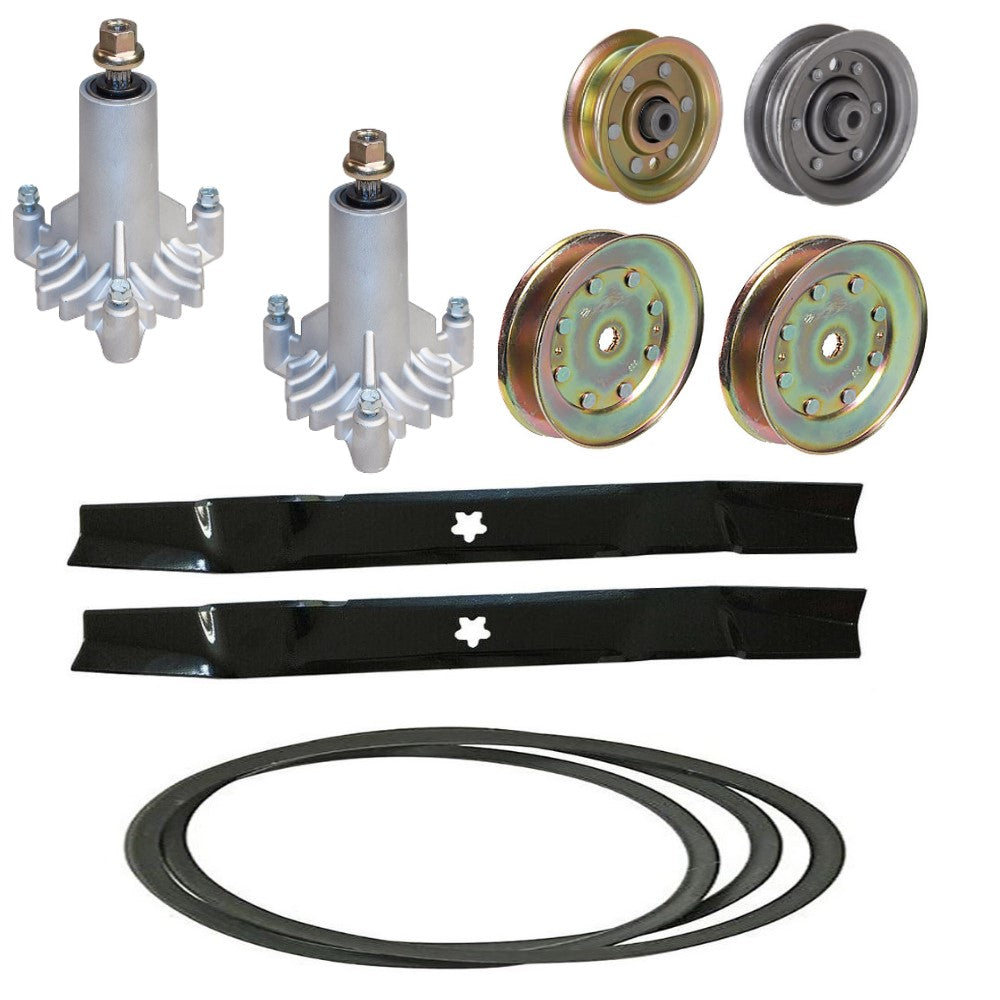

One New Aftermarket Deck Rebuild Kit with Mulching Blades



Tech Info:
 -(1) Flat Idler Pulley
 -Inner Diameter: 3/8"
 -Outer Diameter: 3-7/8"
 -Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38
 -
 -(1) Flat Idler Pulley
 -Inner Diameter: 3/8"
 -Outer Diameter: 3-7/8"
 -Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888
 -
 -(1) Deck Belt
 -Length: 95-1/2"
 -Width: 1/2"
 -Replaces Part Numbers: 21547026, 21547027, 21547082, 21547188, 144959, 144959D
 -
 -(2) Drive Pulley
 -Inner Diameter: 5/8" Splined
 -Outer Diameter: 5"
 -Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535
 -
 -(2) Spindle Assembly
 -Overall Height: 7"
 -5 Point Star Blade Mount
 -Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285
 -
 -(2) Mulching Lawn Mower Blade Tech Info:
 -Length: 21"
 -Width: 2-1/4"
 -Center Hole Diameter: 5-Point Star
 -Replaces Part Numbers: 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136



Made to Fits Craftsman:
 Lawn/Garden Tractor Models: LT1000, LT2000 42" Mower Decks
 Replaces Part Number(s): 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 21546127, 177865, 153535MS, 153535CS, 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 490-130-0004, 490-900-0034, 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136, 13926, 510417901, 539119852, 539119843, 539118038, , 000000532134149, 41-49, 4149, 53-213-41-49, 532-1341-49, 5321341-49, 594892701, 594893101, 777 13 41-49, 917539110460, 917532422719, 954636867, 917777134149, 917532424752, 917532139775, 917532138498, 91724676, 917139775P, 917138498MS, 917131323, 917127843, 777134149, 539110460, 532424752, 532422719, 532139775, 532138971, 532138498, 532134149, 532131323, 531307224, 531307223, 531005085, 521981601, 24676, 138791, 127843, 424752, 134149, 138498, 422719, 139775, 133288, 138971, 742-025040-637, PP24004, 95-005, 95005


Models This Part Fits:

LT2000 42" Mower Decks, LT1000

Additional Information:

(1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888 (1) Deck Belt Length: 95-1/2" Width: 1/2" Replaces Part Numbers: 21547026, 21547027, 21547082, 21547188, 144959, 144959D (2) Drive Pulleys Inner Diameter: 5/8" Splined Outer Diameter: 5" Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535 (2) Spindle Assemblies Overall Height: 7" 5 Point Star Blade Mount Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole Diameter: 5-Point Star Replaces Part Numbers: 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136

Reference Numbers:

104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 21546127, 177865, 153535MS, 153535CS, 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 490-130-0004, 490-900-0034, 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136, 13926, 510417901, 539119852, 539119843, 539118038, , 000000532134149, 41-49, 4149, 53-213-41-49, 532-1341-49, 5321341-49, 594892701, 594893101, 777 13 41-49, 917539110460, 917532422719, 954636867, 917777134149, 917532424752, 917532139775, 917532138498, 91724676, 917139775P, 917138498MS, 917131323, 917127843, 777134149, 539110460, 532424752, 532422719, 532139775, 532138971, 532138498, 532134149, 532131323, 531307224, 531307223, 531005085, 521981601, 24676, 138791, 127843, 424752, 134149, 138498, 422719, 139775, 133288, 138971, 742-025040-637, PP24004, 95-005, 95005

Product Sub Group:

Deck Components
