Water Temperature Sender Switch 3073787R1 Fits Case IH 395 485 584 585 685 895 3

Water Temperature Sender Switch 3073787R1 Fits Case IH 395 485 584 585 685 895 3

$28.00 CAD
$28.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Water Temperature Sender Switch Fits Case IH and Fits International Harvester Tractors

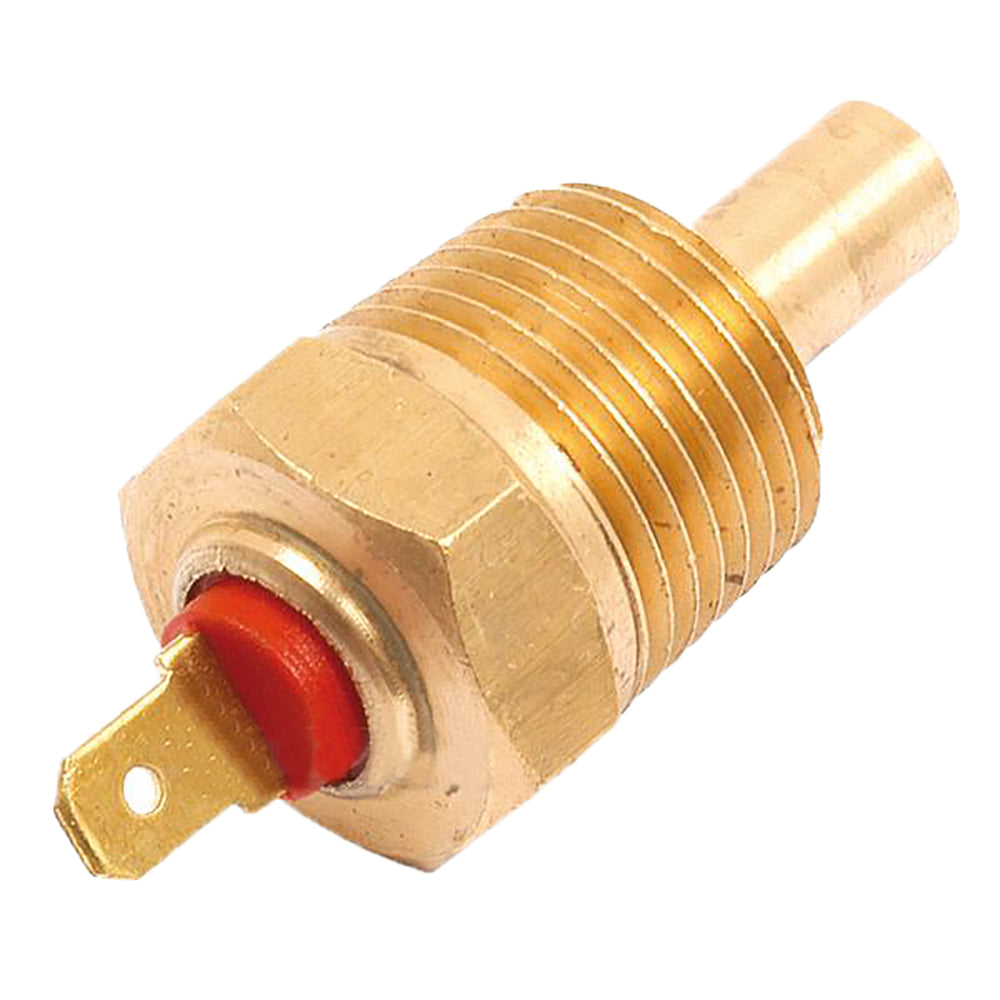

This aftermarket replacement water temperature sender switch monitors engine coolant temperature and sends a signal to the dashboard gauge, alerting the operator to overheating conditions. Also known as a water temperature transmitter or Icknield sender, it threads directly into the engine block or coolant passage using a standard M14 x 1.5 metric thread. Compatible with a wide range of Fits Case IH (Fits Case) and Fits International Harvester (IH) tractors produced from the 1970s through the late 1990s.

Specifications

  • Overall Height: 52mm
  • Thread Size: M14 x 1.5 (Metric)
  • Nut Diameter: 18mm

Compatible Models

Fits Case IH Tractors: 238, 248, 258, 268, 278, 288, 354, 380B, 385, 395, 395XL, 484, 485, 485XL, 495, 584, 585, 585XL, 595, 595XL, 684, 685, 685XL, 695, 695XL, 784, 785, 785XL, 795, 884, 885, 885XL, 895, 895XL, 995, 2300, 3210, 3220, 3230, 4210, 4220, 4230, 4240, Hydro 84

Replaces Part Number(s):

3073787R1, 3127956R1, 709280R91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

485, 695, 4230, 288, 485XL, 785XL, 795, 354, 585, 268, 885, 238, 895, 895XL, 258, 278, 584, 495, 685, 2300, 3210, 3220, 484, 4240, 785, 684, 995, 4220, 784, 695XL, 4210, 385, 885XL, 248, 685XL, 595XL, 595, 395, 585XL, 884, 3230, HYDRO 84

Additional Information:

Overall Height - 52mm Thread Size - M14 x 1.5 Thread - Metric Nut Diameter - 18mm

Reference Numbers:

3073787R1, 3127956R1, 709280R91, 3127956R1

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Switches
View More: Switches Replacement Parts
